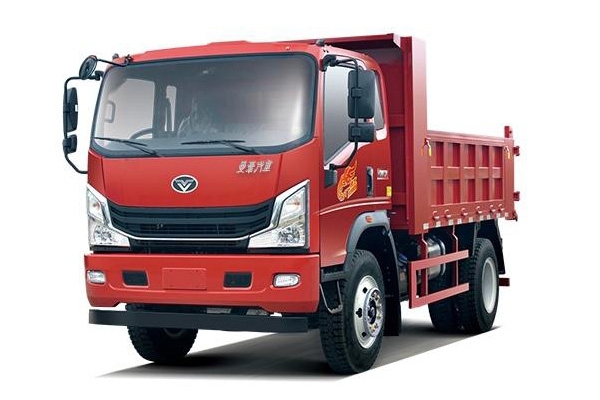

Ox Luck Front and Center: 4×2 Yellow License Dump Truck

This dump truck is equipped with a Weichai Power WP4.1NQ190E61 engine, matched with a Fast 8-speed wide speed ratio and small step ratio transmission along with a large speed ratio drive axle, providing stronger vehicle start and climbing capabilities. The heavy-duty truck technology features an overall roll-pressed one-time formed frame, offering greater load capacity. The frame is fully treated with electrophoresis, and the bolts and nuts are galvanized for corrosion resistance, ensuring durability. The widened and enlarged rear flip support and upper body balance beam make the vehicle more stable and safer to use. It is more suitable for the transportation needs of urban and rural small waste and building materials.

Technical Parameters

Engine Model WP4.1NQ190E61
Net Power (KW)/Speed (r/min) 136/2600
Maximum Torque (Nm)/Speed (r/min) 680/1300-1900
Transmission 8JS85E transmission
Clutch (mm) Φ440
Rear Axle Model 153(10T)
Rear Axle Ratio 5.571
Fuel Tank (L) 150
Frame Section (mm) 255
Suspension (Front Spring Rear Spring) Front and rear multi-leaf spring (9/11+8)
Tires 10.00R20-18PR

Vehicle Configuration

Overall Vehicle Parameters
Engine Model WP4.1NQ190E61
Dimensions (mm) 6150×2480×2800,6530×2480×2800
Wheelbase (mm) 3400/3600
Front Overhang Rear Overhang (mm) 1280/1470,1280/1650
Maximum Designated Total Mass (Kg) 18000
Rated Passenger Capacity (people) 2,3
#
